                               Μεταλλικές Συνδέσεις στο SCIA Engineer (Steel Connections) με τον Ευρωκώδικα 3 (EC3)

Το SCIA Engineer σας παρέχει ένα πολύ δυνατό εργαλείο όταν θέλετε να εισάγετε τις πραγματικές συνδέσεις στο μοντέλο πεπερασμένων στοιχείων σας, συμπεριλαμβάνοντας την δυσκαμψία της σύνδεσης (stiffness) και άρα λαμβάνοντας τις πραγματικές τάσεις (stresses) και δυνάμεις κατά την ανάλυση και τον σχεδιασμό ολόκληρου του φορέα σας!

Διαβάστε περισσότερα για τη
δυσκαμψία (stiffness) των συνδέσεων.

Το SCIA Engineer έχει εδώ και αρκετό καιρό ενσωματώσει ολόκληρο τον Ευρωκώδικα 3 (EC3) και άρα αυτό θεωρούμε ότι θα ικανοποιήσει και τον πιο έμπειρο Πολιτικό Μηχανικό!


Διαβάστε περισσότερα για την διαστασιολόγηση κατασκευών από χάλυβα:
  • SCIA Engineer Steel Design


Να σημειώσουμε ότι οι συνδέσεις μας συνεχώς αυξάνονται, εφόσον μας ζητηθεί από τους πελάτες μας, σε μελλοντική αναβάθμιση του λογισμικού μας.

Διαβάστε πως στη ιστοσελίδα Resources:
  • Frame-Rigid Connections
  • Frame-Pinned Connections
  • Grid-Pinned Connections
  • Frame-Bolted Diagonals

Καθώς και πιο αναλυτικά στην ιστοσελίδα της Διαδικτυακής Βοήθειας (http://help.scia.net)

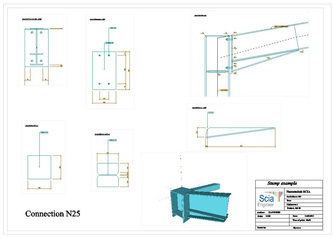

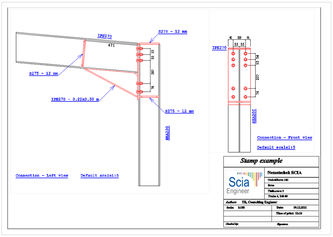

Σχετικά για τα γενικά κατασκευαστικά σχέδια του φορέα και των συνδέσεων πατήστε ΕΔΩ


Steel connection design extensions in SCIA Engineer 16.1

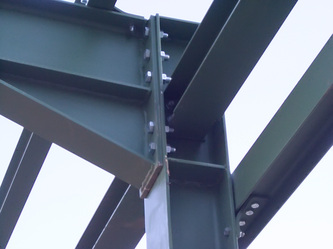

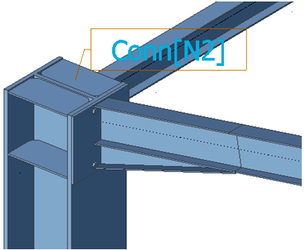

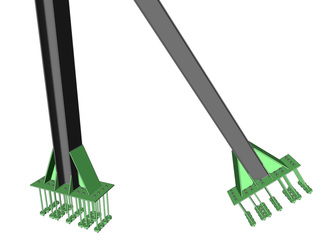

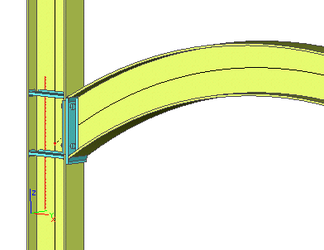

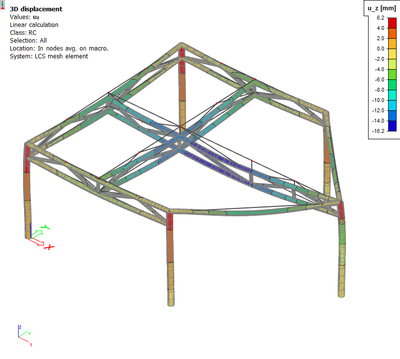

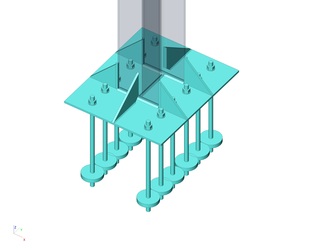

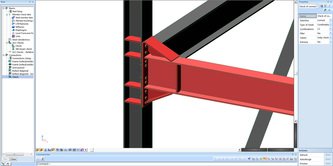

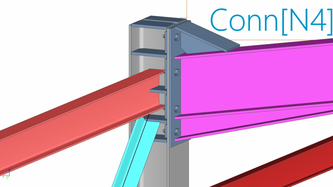

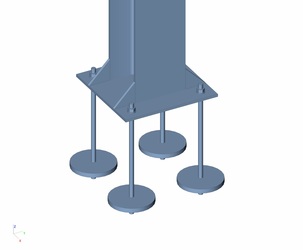

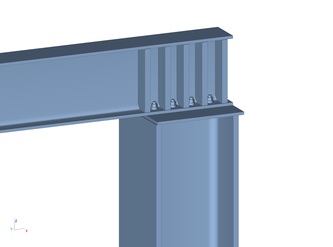

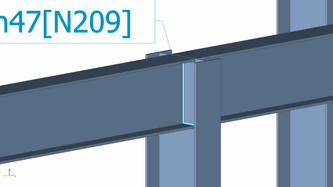

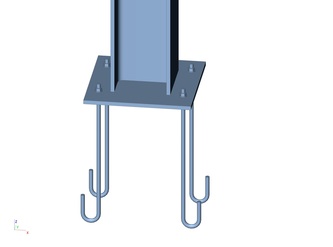

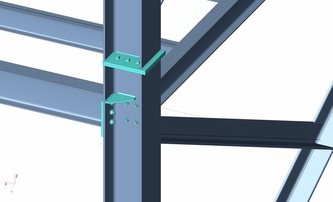

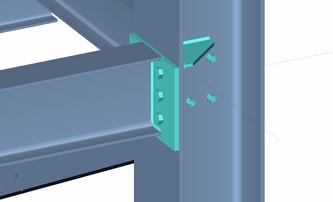

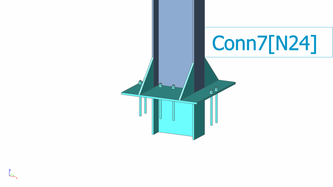

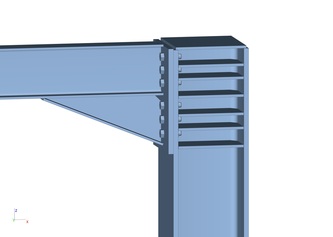

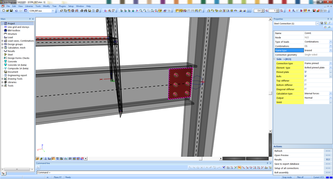

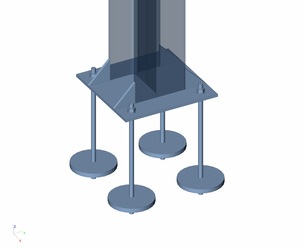

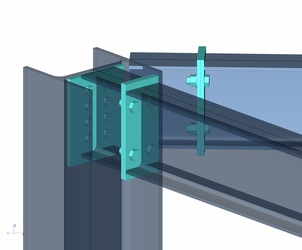

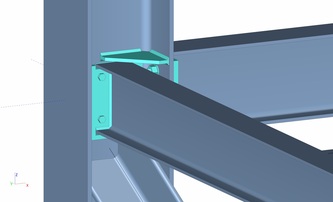

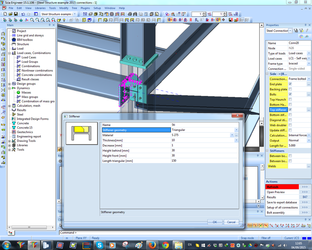

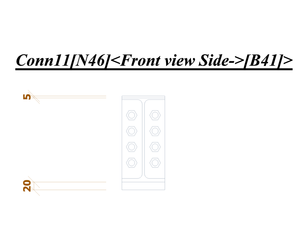

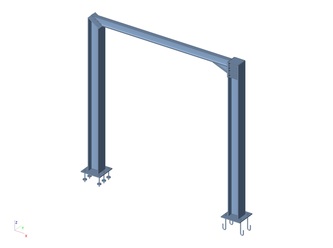

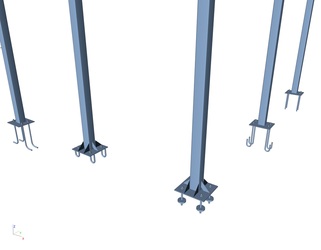

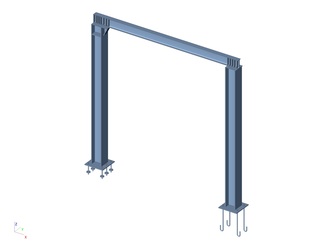

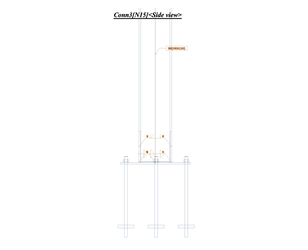

Base plate connections can now use stiffening elements that were previously available in SCIA Engineer only in beam-to-column joints. The user can introduce single or double-sided haunches and verify the connection capacity and stiffness taking these into account.

The presence of haunches has influence on the relevant components and failure modes of the base plate connection. By combining haunches with column flange extensions, the user can increase the connection capacity and stiffness in both the major and minor direction of the column base.

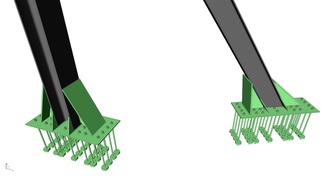

Haunches can also be introduced to inclined columns; in those cases, the base plate can be either perpendicular to the column or horizontal in relation to the global coordinate system.

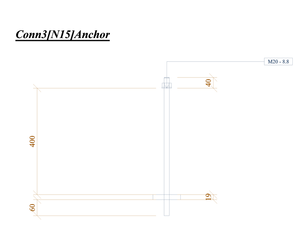

The length of anchor bolts is now determined according to §8.4 of EN 1992-1-1; the calculation takes into account the bond strength of the used concrete class and the specified bond conditions (good or poor). Stress in the anchor bolts is calculated either from the internal forces that are present in the support or from the highest bolt-row resistance obtained in the calculation of Mj,Rd.

Minimal anchorage length requirements according to §8.4 are also taken into account.



Δείτε το βίντεο με τις δυνατότητες του SCIA Engineer στις συνδέσεις !!!

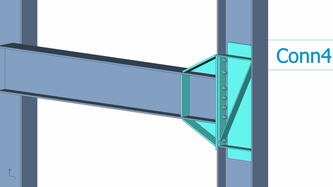

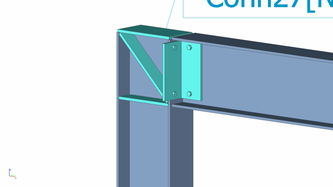

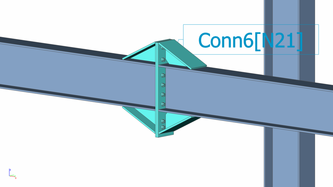

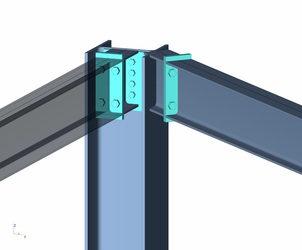

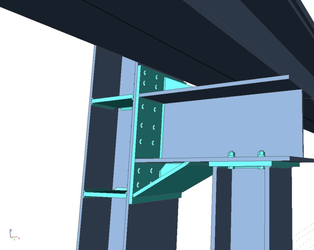

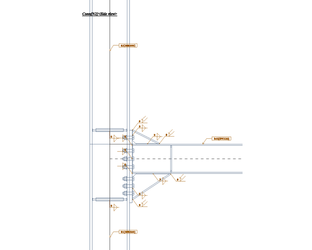

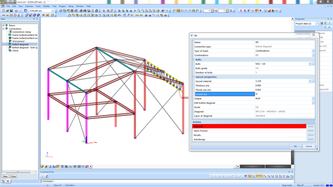

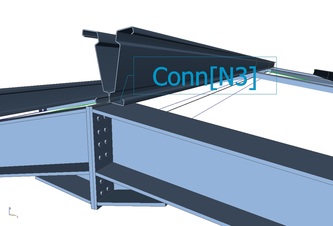

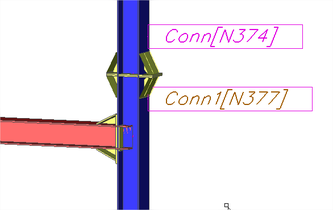

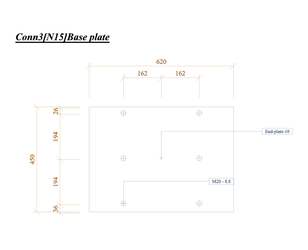

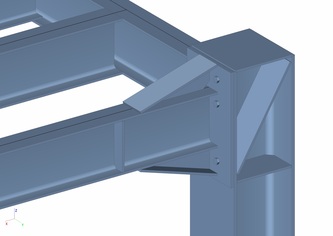

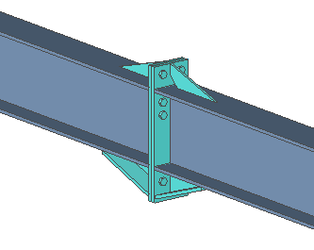

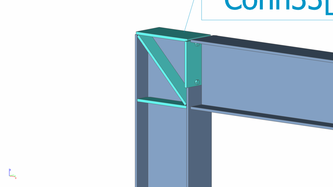

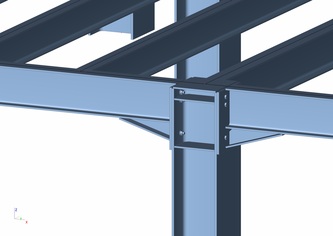

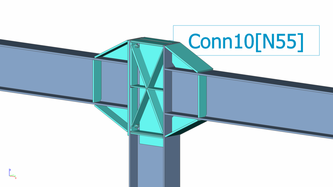

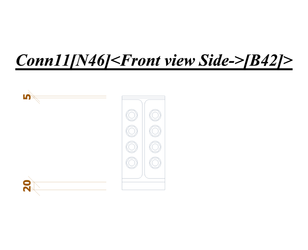

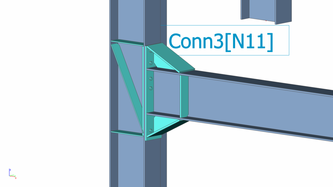

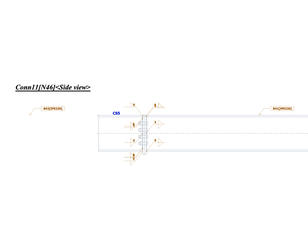

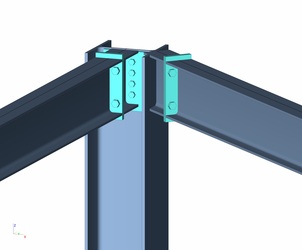

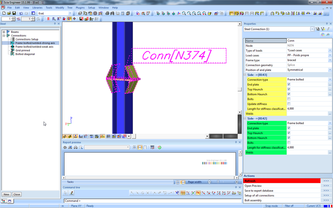

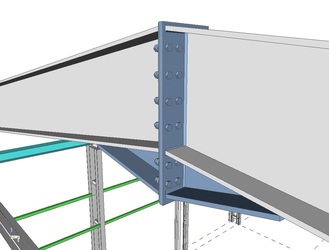

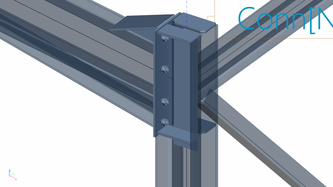

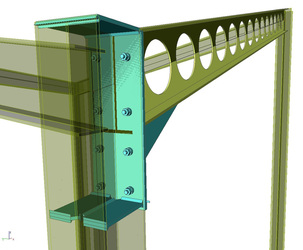

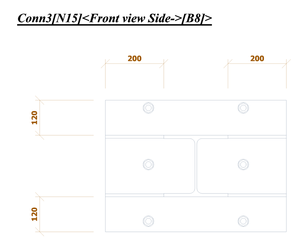

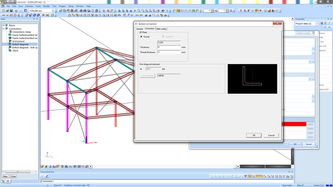

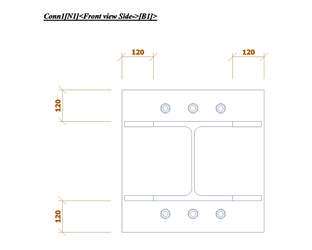

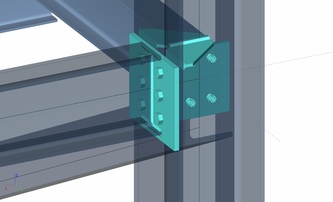

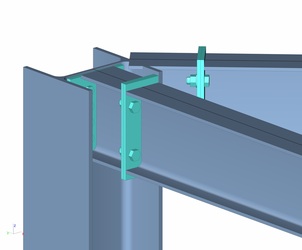

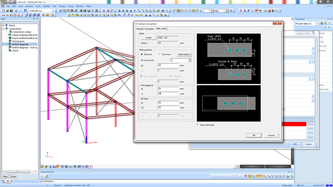

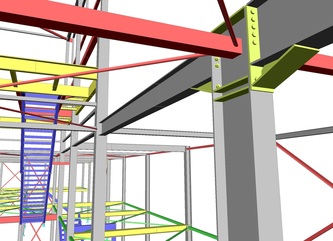

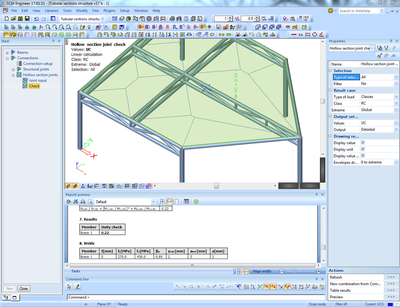

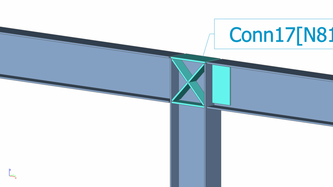

Δείτε μερικές από τις συνδέσεις μας:
