Γνωρίστε το SCIA Engineer 16.1!

14/11/2016

0 Comments


Code-design of beams and columns

The solution for design of reinforced concrete beams, columns and ribs has been further extended by reinforcement templates and it now covers the complete workflow:

Definition

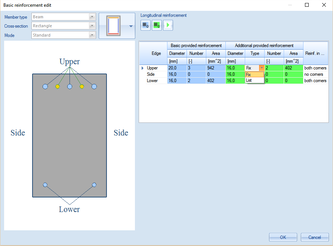

  • Definition of basic amount of reinforcement.
  • Definition of settings for the calculation of the additional reinforcement
  • Selection of templates from a library.
Calculation
  • Calculation of required area of reinforcement or required number of bars of a given diameter

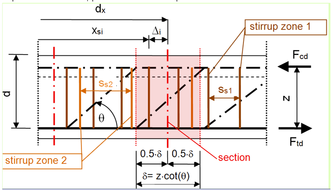

  • Calculation of shear reinforcement as required area or as required number of legs
Review and check

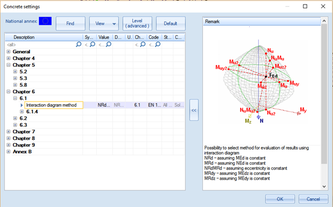

  • Comparison of the required area of reinforcement with the limit values stipulated in the code.

Steel connections enhancements

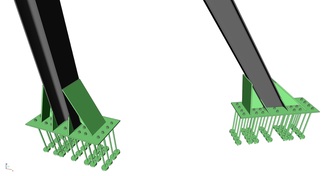

  • Base plate connections design in full compliance with EN 1993-1-8 including calculation of moment resistance, determination of rotational stiffness, classification of the connection.
  • The length of anchor bolts is now determined according to EN 1992-1-1 and the strengthening effect of the concrete block around the zone in contact with the base plate is taken into account.

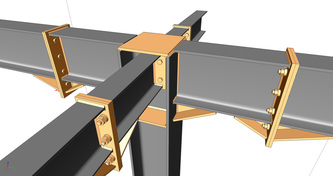

  • Beam-to-column connection with 4 bolts now calculates the tension resistance of groups of bolt rows.
  • The built-in libraries have been extended by bolts, screws, nuts and washes according to the latest ISO/EN codes.
  • Better arranged and clearer report.

Read more: http://resources.scia.net/en/articles/whatsnew/se161.htm
